Genie · Articulating Boom Lifts
Z-34/22 DC

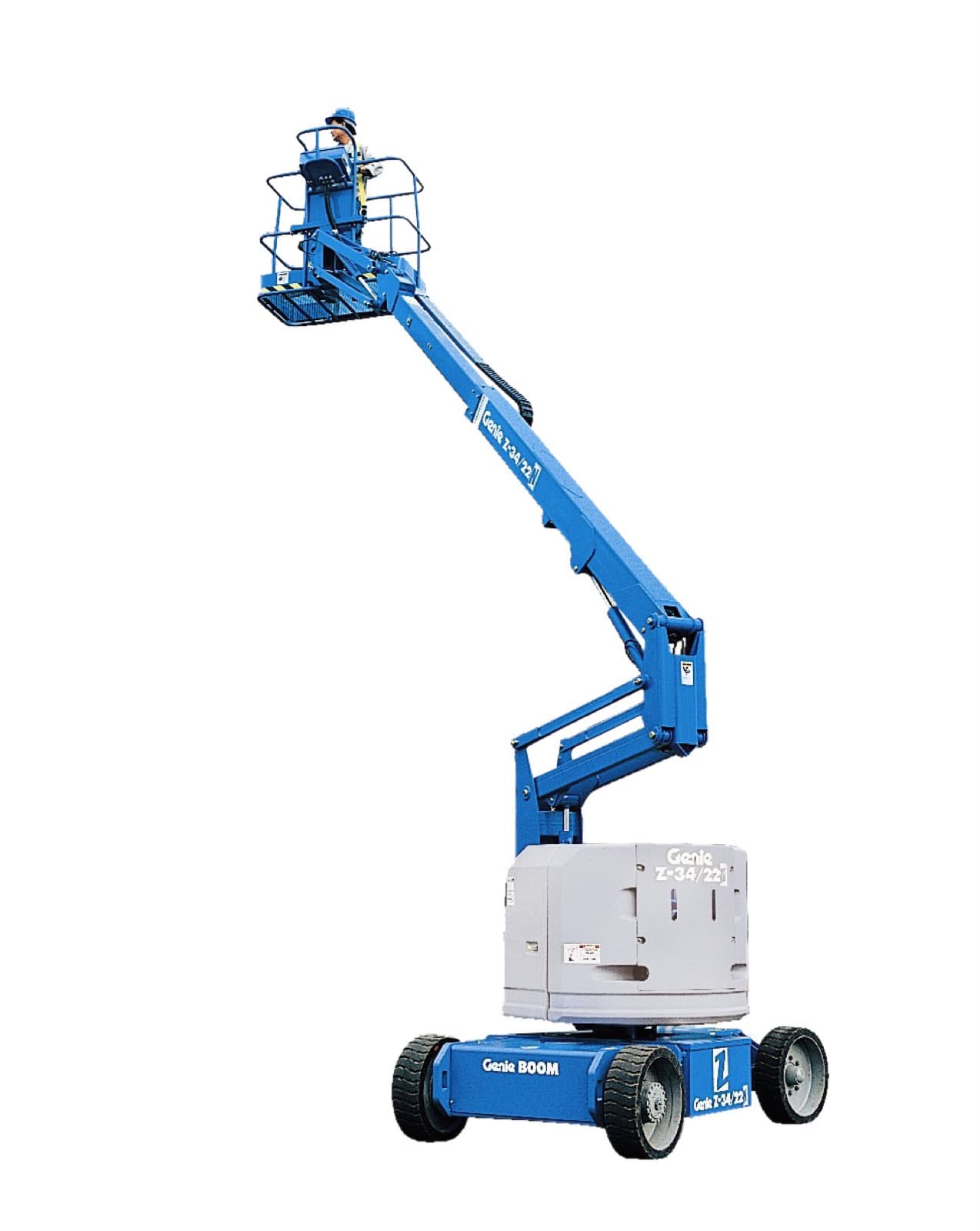

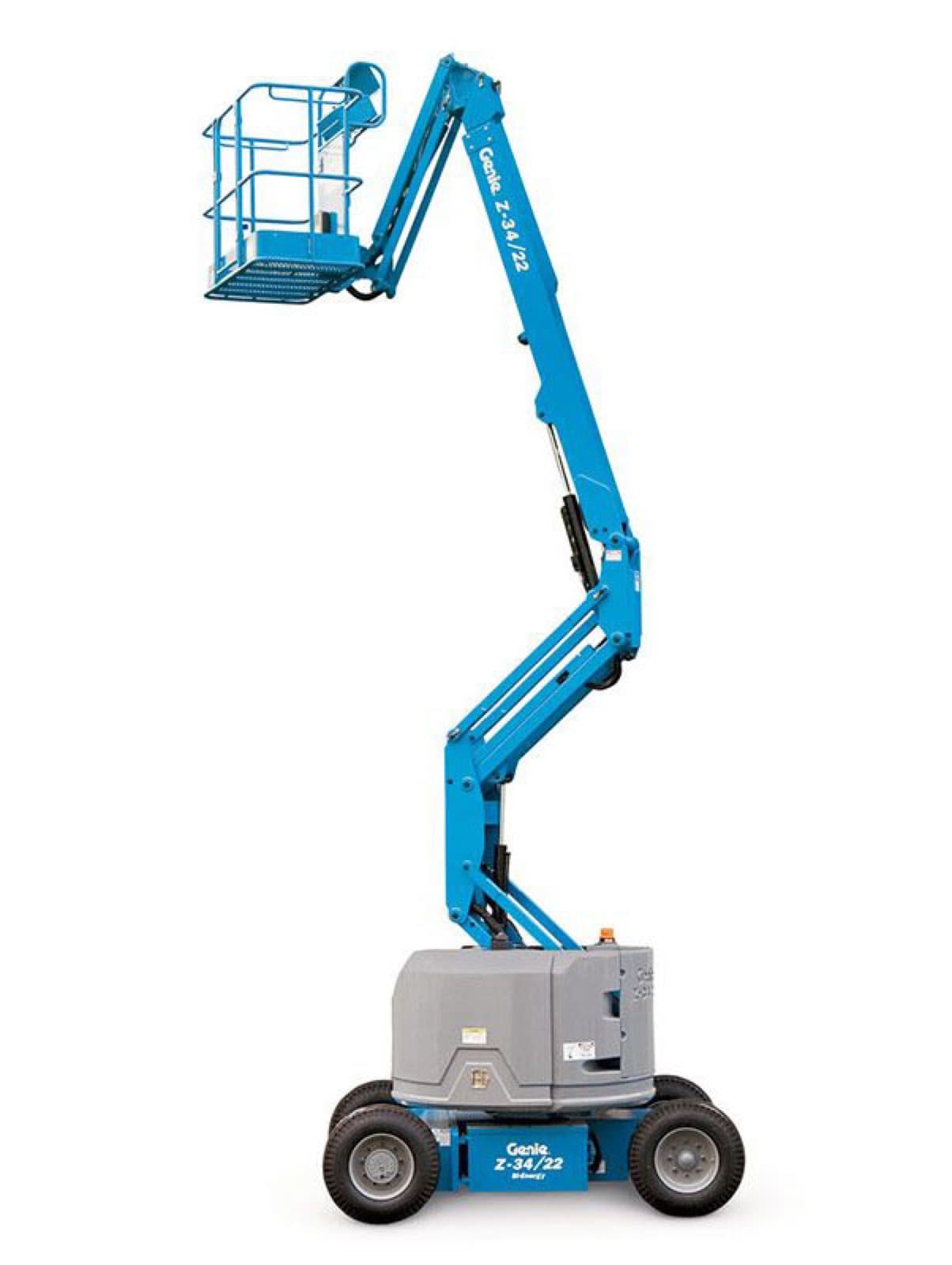

The Genie® Z®-34/22 DC electric articulating boom lift offers quiet, emission-free operation. With this Genie electric boom lift, operators can easily work close to buildings or around obstacles and access overhead work from aisles and other congested areas.
- Working height
- 12.52 m
- Platform capacity
- 227 kg
- Outreach
- 6.78 m
- Manufactured to CE and EN 280 standards
- Mobile service and periodic maintenance
- Certified operator training on delivery
Key features
Z-34/22 DC — why choose it?
- Zero tail swing and zero front arm swing in stowed and raised positions allow for work in tight spaces
- Compact chassis for narrow aisle access
- 30% gradeability and 4 mph (6.4 km/h) travel speed for excellent drive performance
- 4 ft (1.22 m) articulating jib with a 139° vertical rotation to accurately position workers
- 180° hydraulic platform rotation and self-levelling platform for easy operation
- Motor controller eliminates the need for forward/reverse contactors or speed sensors, reducing complexity and improving reliability of the drive system
Genie · Articulating Boom Lifts
Specifications
Genie Z-34/22 DC
Values are based on manufacturer data; may vary by options and configuration.
Download brochure (PDF)- Maks. çalışma yüksekliği
- 12,52 m
- Maks. yatay erişim
- 6,78 m
- Maks. engel üstü geçiş yüksekliği
- 4,57 m
- Platform kapasitesi
- 227 kg
FAQ
Z-34/22 DC
questions
Genie Z-34/22 DC kaç metreye çıkar?
Genie Z-34/22 DC, 12,52 m çalışma yüksekliğine ulaşır. Yatay erişimi 6,78 m.
Genie Z-34/22 DC sepet kapasitesi ne kadar?
Genie Z-34/22 DC sepette en fazla 227 kg taşır.
Genie Z-34/22 DC kapalı alanda kullanılabilir mi?
Evet. Akülü Genie Z-34/22 DC, iç mekân kullanımına uygundur; dış mekânda da çalışabilir.
Genie Z-34/22 DC Türkiye’de nereden satın alınır veya kiralanır?
Plato Makina, Z-34/22 DC için satış, kısa ve uzun dönem kiralama, 7/24 teknik servis, orijinal yedek parça ve operatör eğitimi hizmetlerini sunar. Fiyat ve teslim süresi için teklif formunu doldurabilirsiniz.
Get a quote
Z-34/22 DC — learn price and lead time.
Our sales team evaluates your site and prepares an offer with the best configuration, options and delivery plan.
- New and used options
- On-site test available
- Service and spare-parts assurance
